Job Queue Entry Failed, Get Notified on Teams

Introduction

A notable limitation in Business Central is the monitoring of Job Queue Entries. Although monitoring encompasses a wide range, I will present a method to receive notifications in a Teams Channel when a Job Queue Entry fails.

To send a notification to Teams from Business Central, I will utilize Power Automate.

PS> Get-BlogPostStructure -TableOfContents

• Introduction
• Creating an External Business Event
• Setting Up Power Automate Flow
• The Results

For Power Automate to receive an event from Business Central, Business Central must raise an External Business Event. Currently, there is no such event available out of the box.

Creating an External Business Event

To generate an External Business Event, I will subscribe to the OnAfterLogError event in the “Job Queue Error Handler” Codeunit and then trigger a new External Business Event.

[EventSubscriber(ObjectType::Codeunit, Codeunit::"Job Queue Error Handler", OnAfterLogError, '', false, false)]
local procedure "Job Queue Error Handler_OnAfterLogError"(var JobQueueEntry: Record "Job Queue Entry")
begin
    OnJobQueueError(JobQueueEntry.SystemId);
end;

[ExternalBusinessEvent('OnJobQueueError', 'On Job Queue Error', 'On Job Queue Error', Enum::EventCategory::"Job Queue Error")]
local procedure OnJobQueueError(JobQueueId: Guid)
begin
end;

The subsequent steps involve subscribing to the Event in Power Automate and forwarding details to Teams regarding the Job Queue Entry that has failed.

Setting Up Power Automate Flow

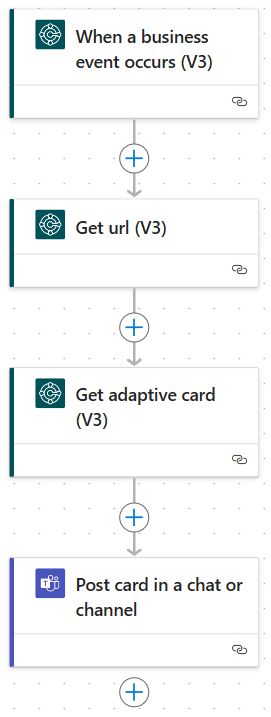

First, I will present an overview of the Power Automate Flow.

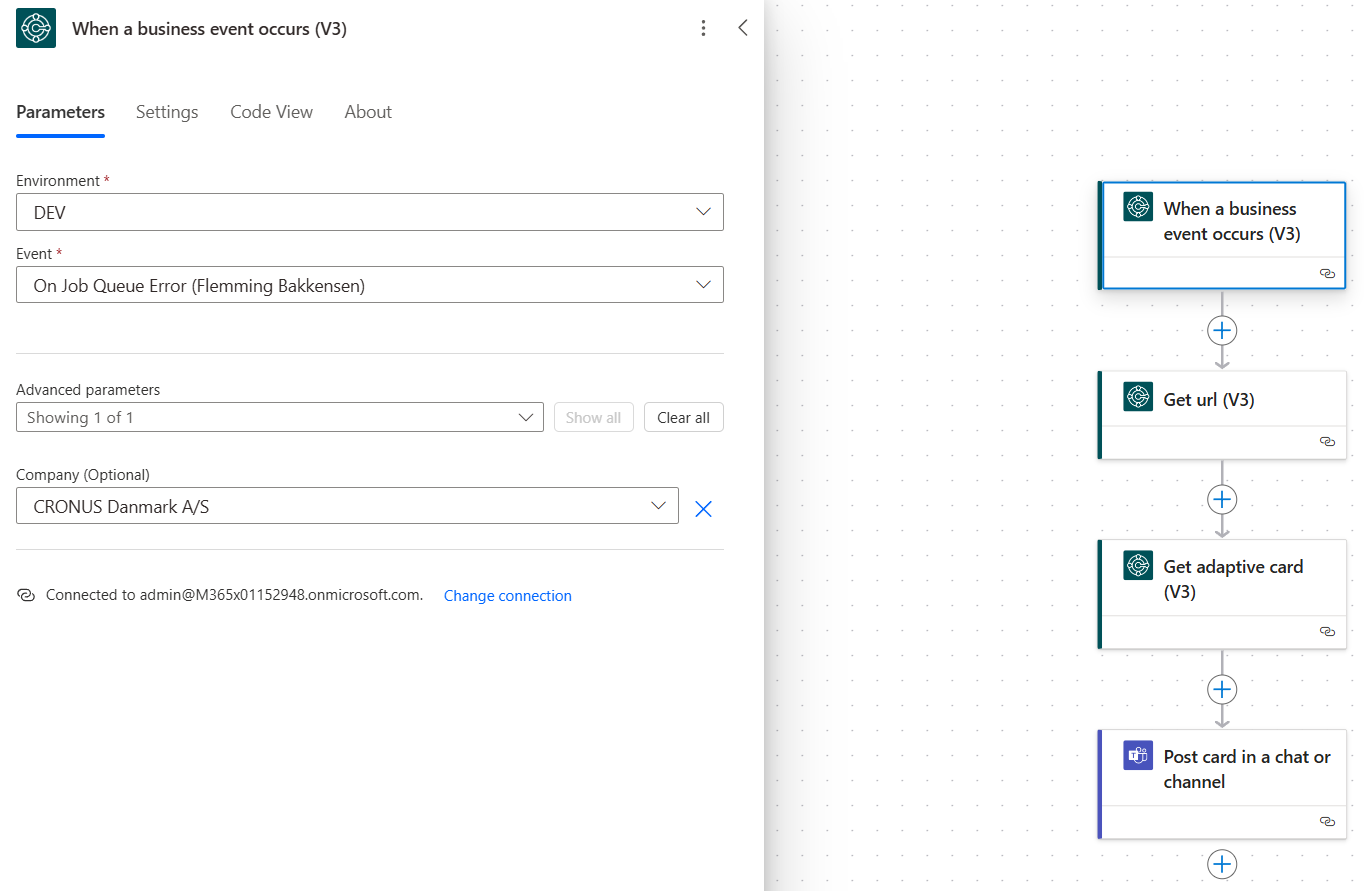

The first step is subscribing to our new External Business Event to start the Flow.

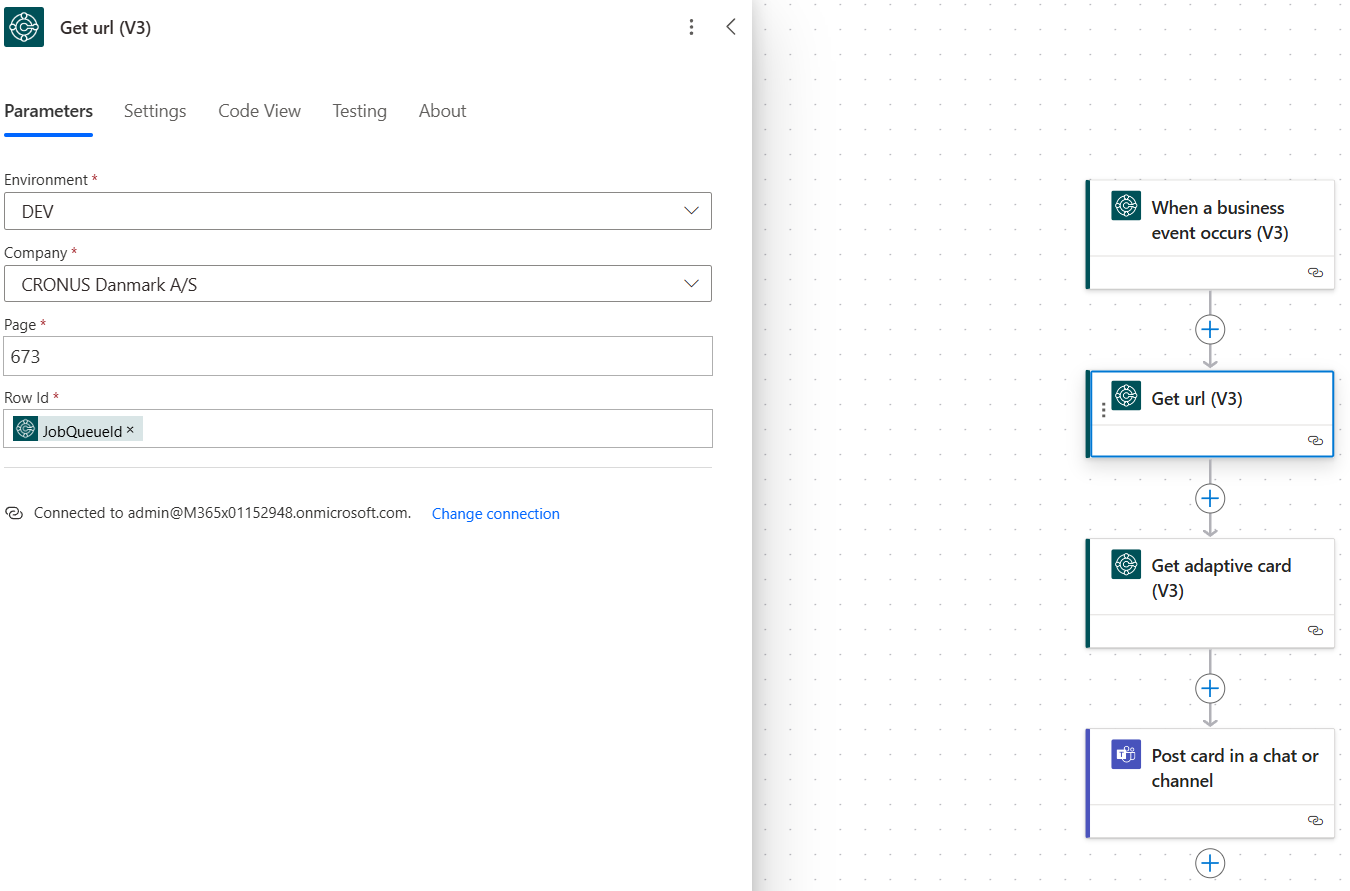

Second is to get the URL for the Job Queue Entry Card, to show information for the Job Queue Entry that failed.

Third is getting an adaptive card for the Job Queue Entry we can post to Teams. Fields in an adaptive card are defined by the Brick layout for the table.

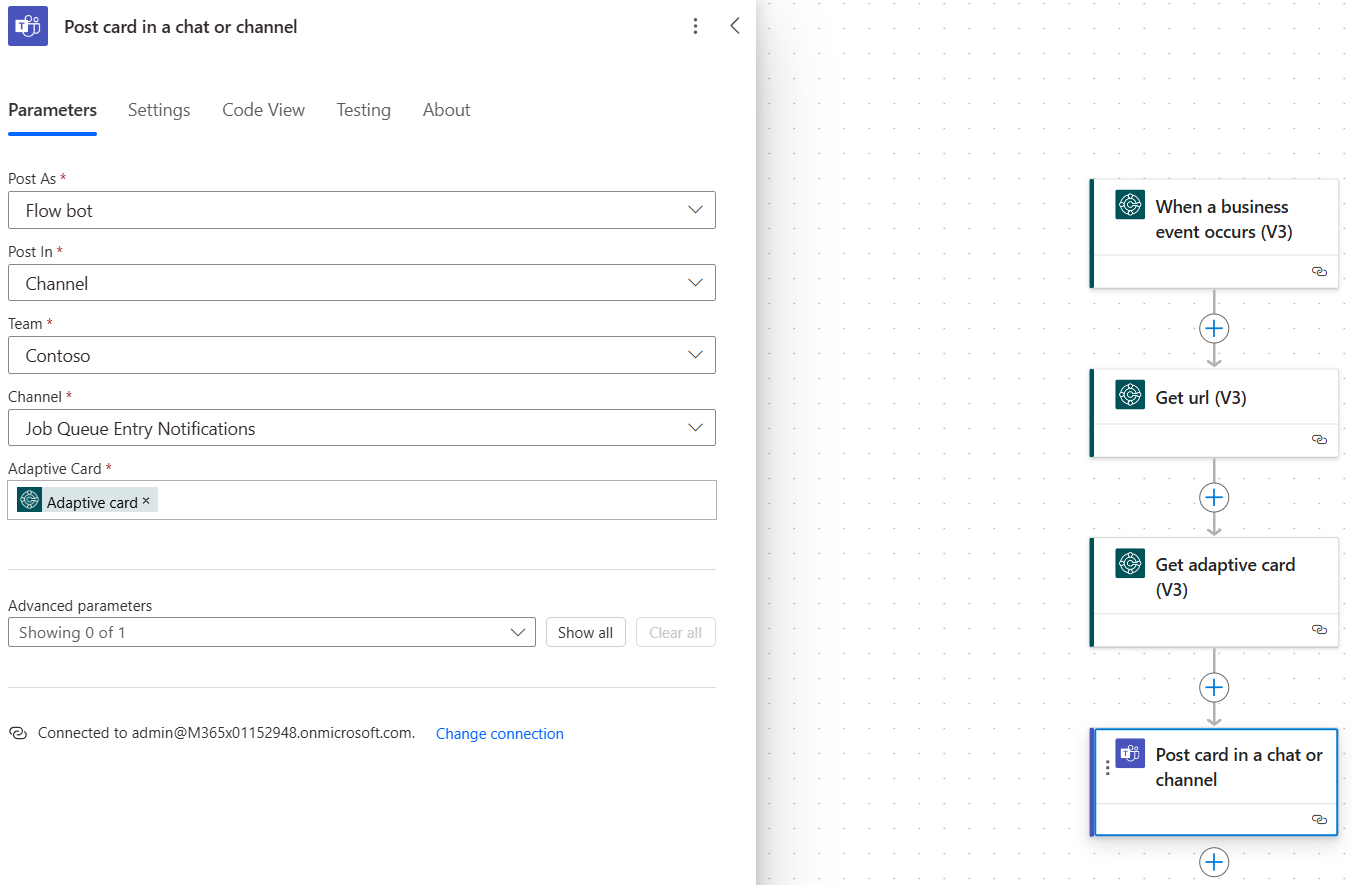

Final step is to post the adaptive card to a Teams Channel.

The Results

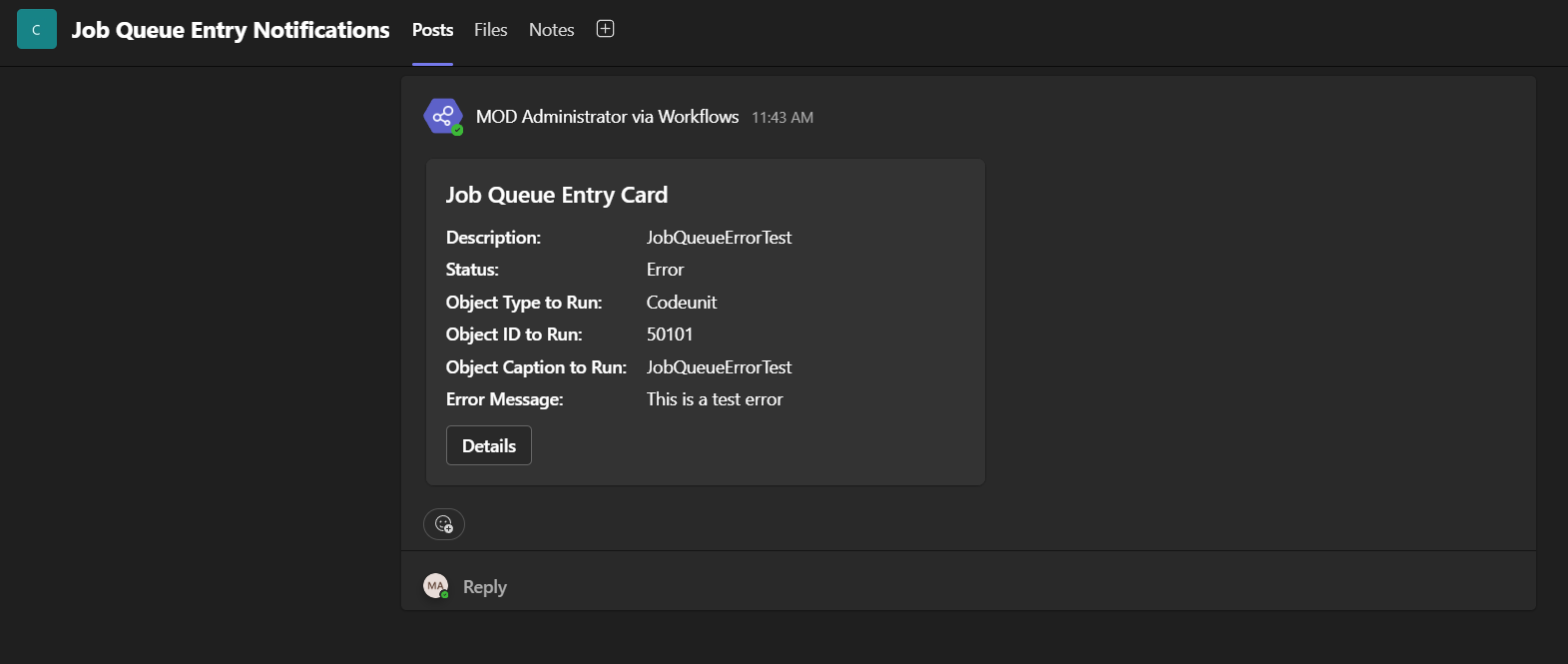

When a Job Queue Entry fails, a new post will be made to the specified Teams Channel. It will look like the following:

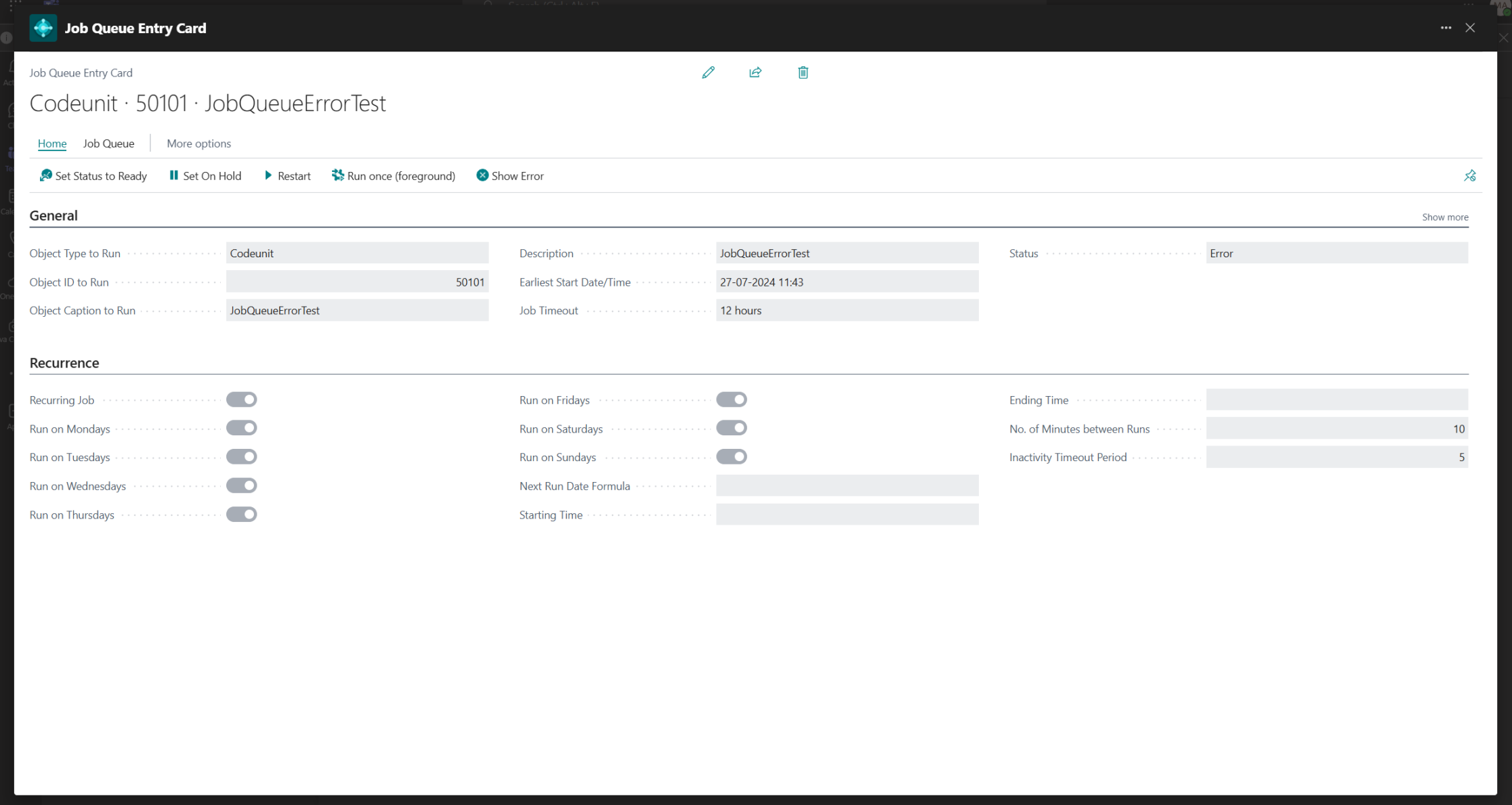

Here it is possible to work directly with the Job Queue Entry by clicking the details button.

The full source code for this article can be found on my GitHub.
